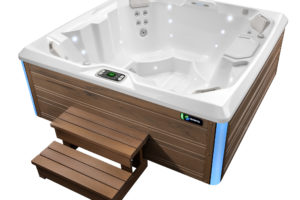

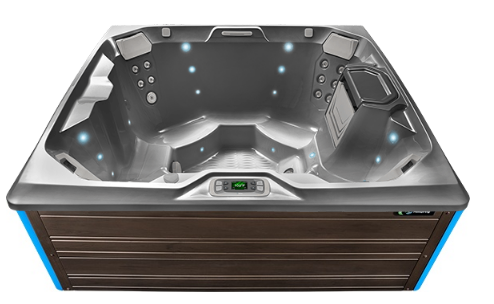

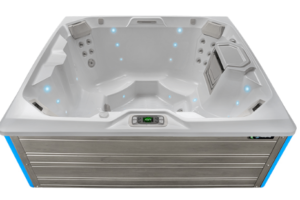

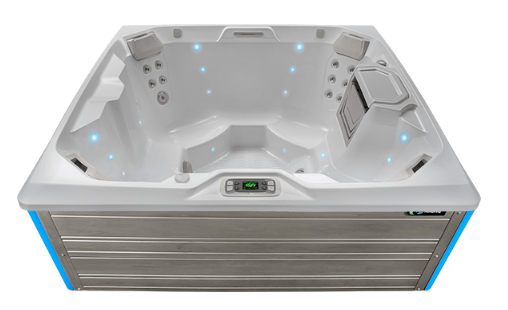

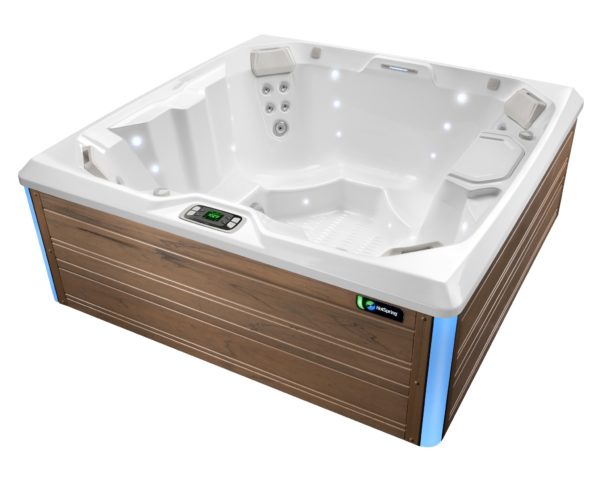

Beam

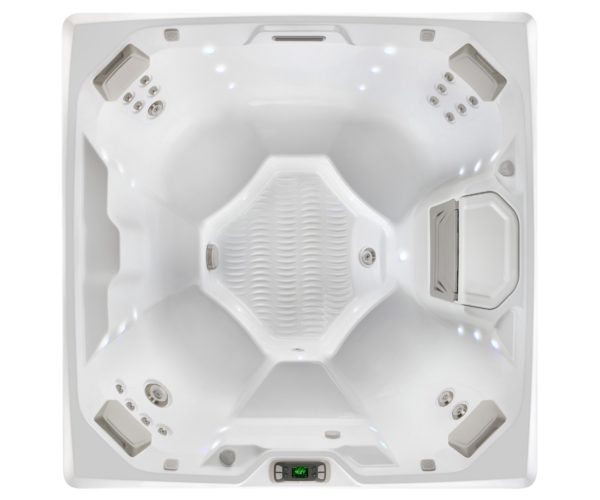

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.

Photo Gallery

Seating Capacity	4 Adults
Dimensions	6’ 8” x 6’ 8” x 33” 2.03m x 2.03m x 0.84m
Water Capacity	310 gallons/1,175 liters
Weight	700 lbs./320 kg 3,820 lbs./1,740 kg*
Jet Count	19
Hot Tub Jets	1 XL Directional Jet 2 Standard Single Rotary Jets 2 Standard Directional Jets 14 Directional Precision Jets

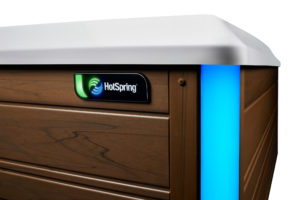

Lighting System	Raio^® multi-color interior points of light (16) Exterior multi-color lighting with timer

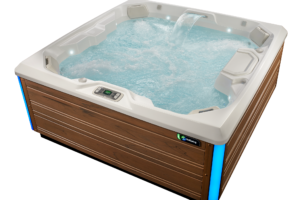

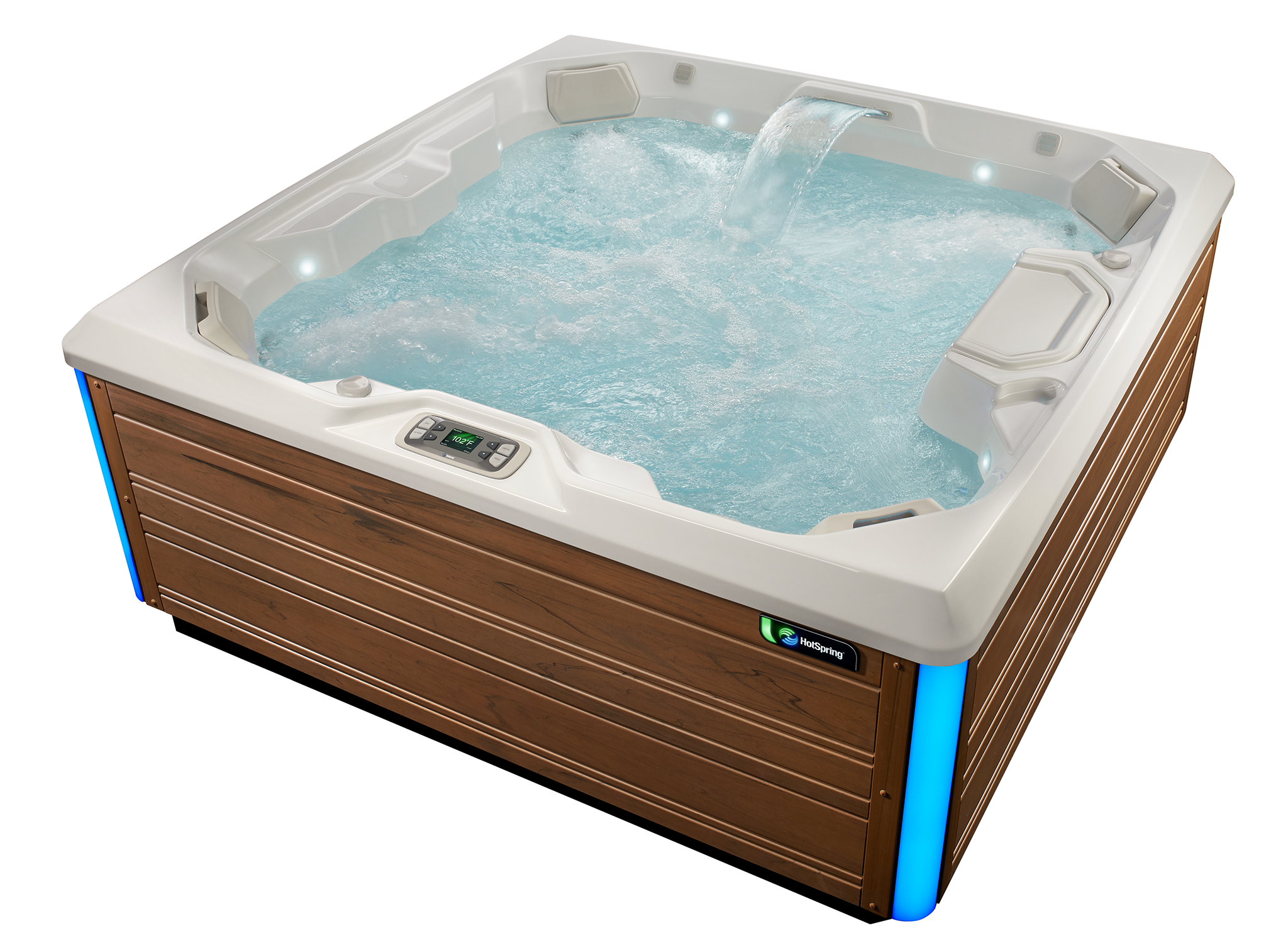

Water Features	Vidro^® backlit ribbon waterfall
Control System	IQ 2020^® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel or 115v/20amp, 60Hz Includes G.F.C.I. protected power cord
Heater	No-Fault^®, 4000w/230v or 1,500w/115v
Jet Pump 1	Wavemaster^® 9000 One-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque or Wavemaster^® 7000 One-speed 1.65 HP, continuous duty 3.5 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care System	ACE^® Salt Water Sanitizing System or EverFresh^® System
Effective Filtration Area	100 sq. ft., top-loading filters
Vinyl Cover	3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal
Vinyl Cover Colors	Caramel Chestnut Slate Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle^®, CoverCradle II^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer
