Envoy

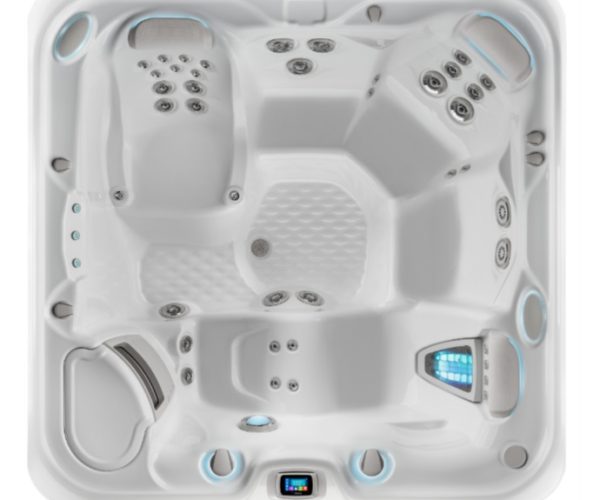

The Envoy is a comfortable lounge spa with room for five. The deep seats and powerful full-body massage features include the exclusive Moto-Massage^® DX jet. The dimensions measure 7’9” x 7’7” x 38”, making the Envoy our largest luxury lounge spa with exceptional massage performance.

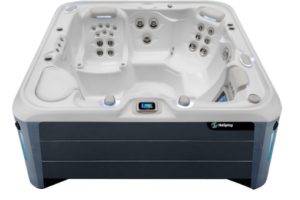

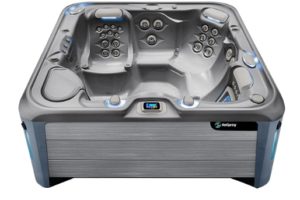

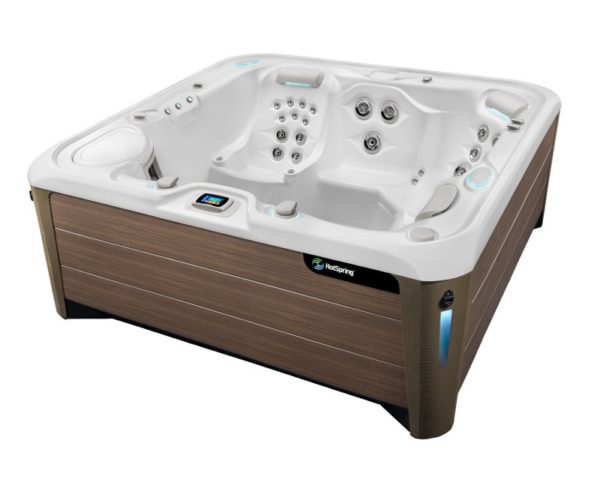

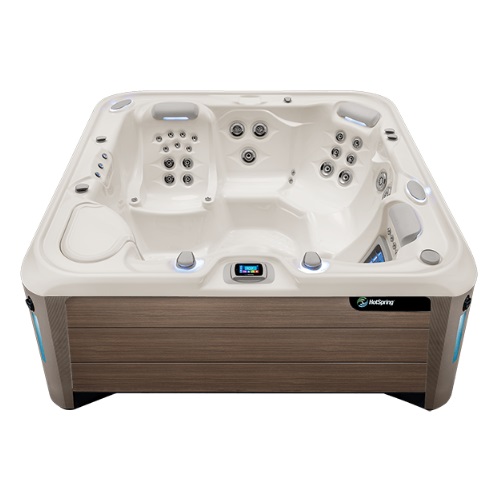

Photo Gallery

Seating Capacity	5 Adults
Dimensions	7’9″ x 7’7″ x 38″ 2.36m x 2.31m x .97m
Water Capacity	390 gallons/1,475 liters
Weight	830 lbs./375 kg dry 4,960 lbs./2,250 kg filled*
Jet Count	43
Hot Tub Jets	1 Moto-Massage^® DX jet (2) 2 SoothingStream^® jets 3 JetStream^® jets 2 Rotary Hydromassage jets 3 Directional Hydromassage jets 10 HydroStream^® jets 2 Rotary Precision^® jets 19 Directional Precision^® jets
Lighting System	Luminescence^® multi-color four-zone
Water Features	BellaFontana^® with 3 illuminated arcs of water
Control System	IQ 2020^® with wireless remote control 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Energy Efficiency	Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Jet Pump 1	Wavemaster^® 9000 One-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
Jet Pump 2	Wavemaster^® 8200 Two-speed 2.0 HP Continuous Duty 4.0 HP Breakdown Torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care System	FreshWater^™ Salt System Ready
Effective Filtration Area	325 sq. ft., top loading Tri-X^® filters; 100% no-bypass filtration
Vinyl Cover	3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal
Vinyl Cover Colors	Chocolate Slate
Entertainment systems (optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 5 adults weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater
