Vanguard

The best seat in the house? That’s every seat in the Vanguard^®. Open and spacious, this family-friendly spa fits six with plenty of leg room. At 7’3” by 7’3” this inspired hot tub design features two seats with our patented Moto-Massage^® DX jets.

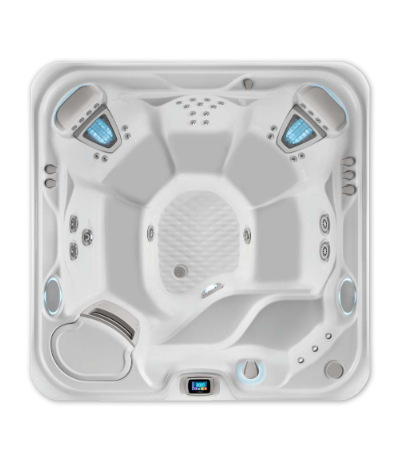

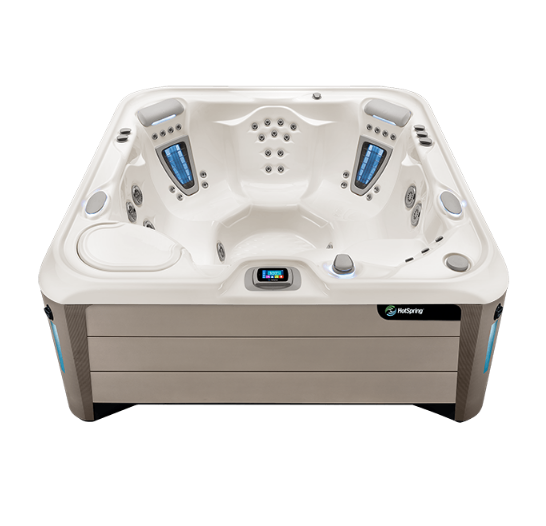

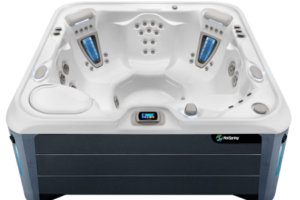

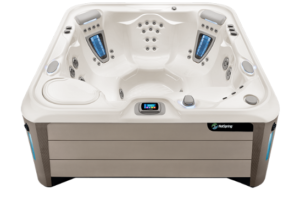

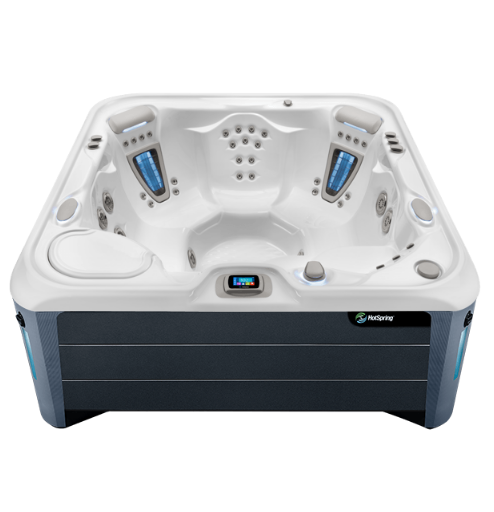

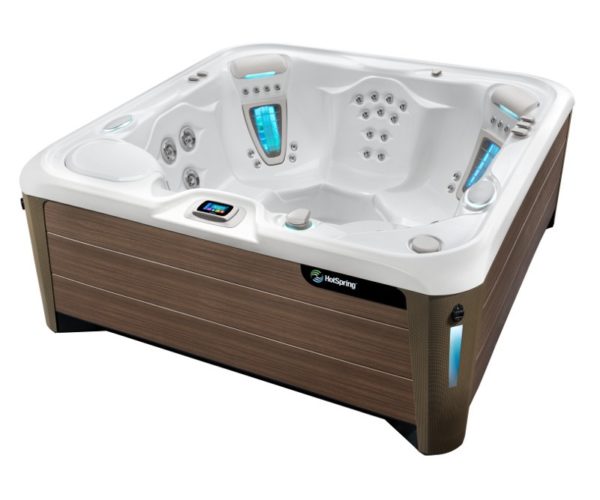

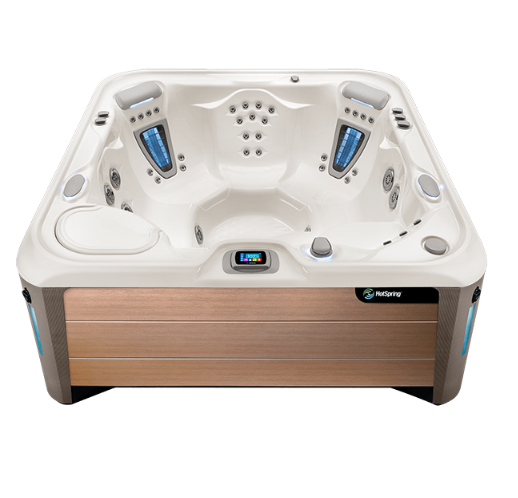

Photo Gallery

Seating Capacity	6 Adults
Dimensions	7’3″ x 7’3″ x 36″ 2.20m x 2.20m x .91m
Water Capacity	335 gallons/1,275 liters
Weight	695 lbs./315 kg dry 4,540 lbs./2,070 kg filled*
Jet Count	38
Hot Tub Jets	2 Moto-Massage^® DX jet (2) 2 SoothingStream^® jets 2 JetStream^® jets 2 Rotary Hydromassage jets 1 Directional Hydromassage jet 27 Directional Precision^® jets
Lighting System	Luminescence^® multi-color four-zone
Water Features	BellaFontana^® with 3 illuminated arcs of water
Control System	IQ 2020^® with wireless remote control 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Energy Efficiency	Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Jet Pump 1	Wavemaster^® 8000 One-speed 2.0 HP Continuous Duty 4.0 HP Breakdown Torque
Jet Pump 2	Wavemaster^® 9200 Two-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care System	FreshWater^™ Salt System Ready
Effective Filtration Area	325 sq. ft., top loading Tri-X^® filters; 100% no-bypass filtration
Vinyl Cover	3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal
Vinyl Cover Colors	Chocolate Slate
Entertainment systems (optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 6 adults weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater
